E Series Manual Shuttle Sealing Machine
SP1218E and SP1428E Heat Sealing Machine

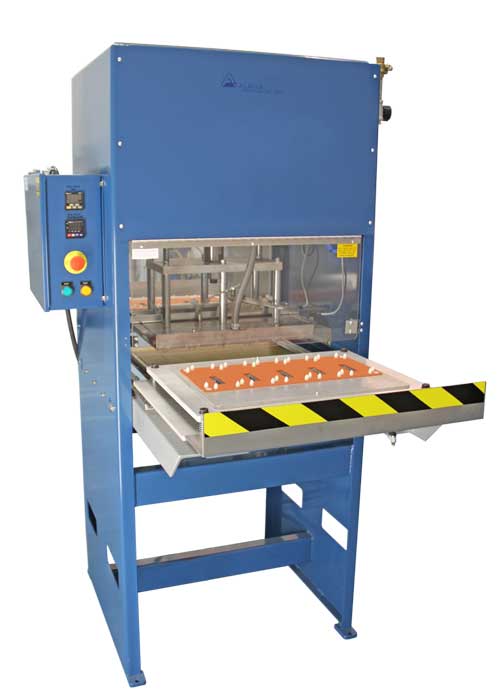

SP1218E Shown with Optional Accessories
Description
The E series manual shuttle sealers are designed for ease of operator training and operation. This series of machines can adapt to seal blister packages for a wide range of products by simply changing the seal tooling. E series comfact design fits conveniently on 3.0′ x 4.5′ of floor space. These systems are competitively priced making them ideal for contract packagers or low volume manufacturers.
The E Series shuttle sealers will provide years of dependable performance with a minimum of maintenance.
Videos
Features
- Sealing capacity
- 12″ x 18.5″ on SP1218E
- 14″ x 28″ on SP1428E
- Digital temperature control
- Digital seal contact timer
- Adjustable sealing pressure
- Manual shuttle tray system, optional powered tray
- Free standing, compact design
- One-sided operation with a two-sided option
- Rapid changeover tooling
- Hinged Lexan™ service door for easy access
- Emergency stop switches
- 1 – 6 cycles per minute
Resources
Specifications

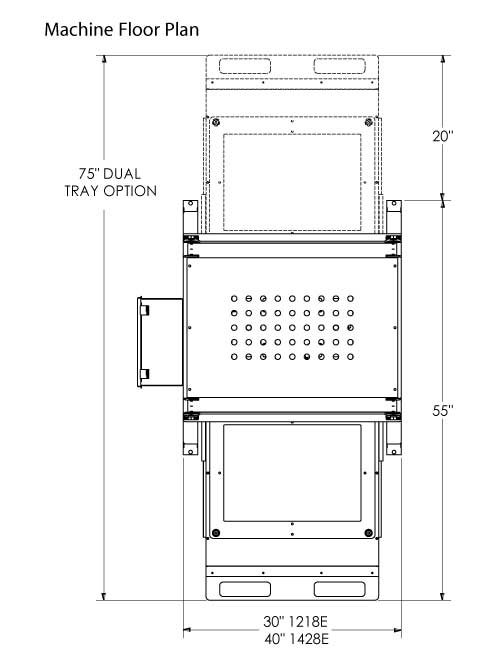

| Header | Specs | |
|---|---|---|
| Machine Type | Semi-Automatic Shuttle | |
| Product Nesting Trays | 1 | |
| Seal Area | ||
| SP1218E | 12″ x 18.5″ | |
| SP1428E | 14″ x 28″ | |
| Sealing Unit | ||
| Operating Temperature Range | 32° – 800°F | |
| Heater Capacity | ||
| SP1218E | 3.9 kW 3900W | |
| SP1428E | 7.8 kW 7800W | |
| Machine Controls | Digital Temperature Controller with Auto Tune, Digital Timer with .1 Adjust | |
| Electrical | ||
| Volts | 208/230 VAC | |
| Amps | 20/30 | |
| Cycles | 60 Hz | |
| Phase | 1/3 | |
| Cycle speed | 6 cycles / minute (operator dependent) | |
| Compressed Air | ||
| Volume | 5/10 SCFM @ 5 cpm at 100 psi | |
| Air Cylinder for Press | ||
| SP1218E | 1 | |
| SP1428E | 2 | |
| Bore Diameter | ||
| SP1218E | 6″ | |
| SP1428E | 6″ | |
| Maximum Form Depth | 4 1/4″ | |
| Machine Dimensions | ||
| Machine Height | 73″ | |
| Machine Width | ||
| SP1218E | 30″ | |
| SP1428E | 40″ | |
| Machine Depth | 55″ | |
| Shipping Weight | 600/800 lb. | |
| Operator Safety | ||
| Controls | Emergency Stop Push Button | |
| Guarding and Interlocks | Lexan™ Door with Positive Break Electrical Safety Interlocks | |
*Disclaimer: Algus reserves the right to modify equipment specifications without prior notification.
Operation
- Operator places blisters or trays in nesting tray
- Operator loads product, puts card stock in place, pushes tray into seal position
- Packages are then sealed at predetermined temperature, pressure, and dwell time settings
- Operator returns the shuttle tray to the load/unload position
- Operator removes sealed packages to complete the cycle
Benefits
- Fits easily in restricted space or tight to a wall
- Reduced operator training
- Seals a wide range of products
- Quick tool changeover assures maximum up-time
- Operator safety features standard on every machine
- Requires limited floor space
Optional Features
- Heat Seal Tooling
- One nesting tray
- One heater plate
- Dual Shuttle Tray
- Powered Shuttle Tray
- Teflon® coating for heater blocks
- Anodized tooling components
- Digital temperature controller
- Foot switch
